Rototilt RC9
or 4 interest-free installments by Afterpay. More Info

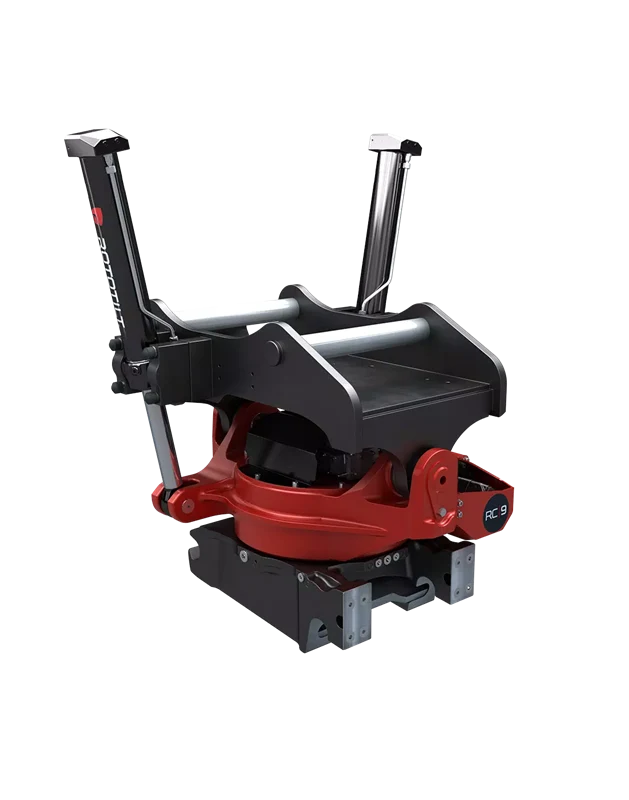

Rototilt® RC9 is our biggest tiltrotator, optimised for excavators weighing between 32-43 tonnes. RC9 transforms the really large machines into powerful and flexible tool carriers, allowing you to take on even more tasks with more profit and productivity. This tiltrotator can handle really high hydraulic flows with an impressive 500 kNm breakout torque. The newly developed pressure-compensated hydraulics also lets you use the tiltrotator’s functions independently of each other for optimum precision.
Description
Description
The RC9 has a powerful worm gear to cope with significant stresses and provide maximum torque, as well as extra hydraulics for a grapple module and other hydraulic tools. In addition, thanks to the RC™ System proportional control system, you can control all the functions in one and the same excavation movement. You also gain access to Rototilt’s other functions and properties, such as an oil-filled rotor housing cast in a single piece for maximum lubrication, minimal wear and long service life. You get even more benefits in combination with the optional RC™ Joysticks and QuickChange™, as well as the SecureLock™ safety lock included as standard.
Technical specification
| Machine weight, min-max | 32000 – 43000 kg |
|---|---|
| Weight (from) | 1480 kg |
| Bucket width, max | 2400 mm |
| Breakout force, max | 280 kN |
| Breakout torque, max | 500 kNm |
| Tilt angle (2x) | 40 ° |
| Rotation speed (1 revolution in) | 8.0 s at 126 l/min |
| Working pressure | 35 MPa |
| Recommended hydraulic flow, min | 206 l/min |
|---|---|
| Number of lubrication points | 2 |
| Rotation torque | 19100 Nm |
| Tilting torque, double-acting cylinders | 90000 Nm |
| Dimension A, Width | 1363 mm |
| Dimension B, Installation height total | 1582 mm |
| Dimension C, Length | 1164 mm |
| Dimension D, Installation height | 773 mm |
