Rototilt RC2
or 4 interest-free installments by Afterpay. More Info

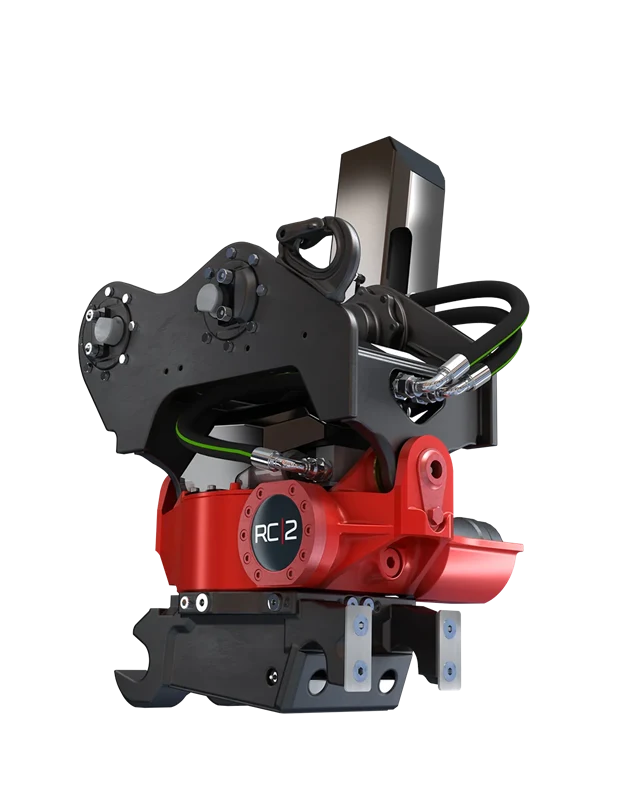

Rototilt® RC2 is designed for excavators weighing between 3-6.5 tonnes. The design is based on the same concept as our larger models with an integrated swivel. This means less hose routing and an increased flow capacity. Despite its low weight, RC2 is a powerful alternative with a high breakout torque and high flow capacity for the use of hydraulic tools under the tiltrotator.
Description
Description
New features with RC2
Improvements in technology and design mean that the RC2 offers a smooth operating experience and a long service life. Unlike earlier tiltrotator series, ILS central lubrication and the SecureLock™ safety lock are included as standard in RC2. A built-in sensor monitors the locking pressure and increases safety, in order to satisfy the requirements set out in EN474.
Technical specification
| Machine weight, min-max | 3000 – 6500 kg |
|---|---|
| Weight (from) | 170 kg |
| Bucket width, max | 1200 mm |
| Breakout force, max | 50 kN |
| Breakout torque, max | 43 kNm |
| Tilt angle (2x) | 40 ° |
| Rotation speed (1 revolution in) | 7.0 s at 30 l/min |
| Working pressure | 25 MPa |
| Rotation torque | 3900 Nm |
|---|---|

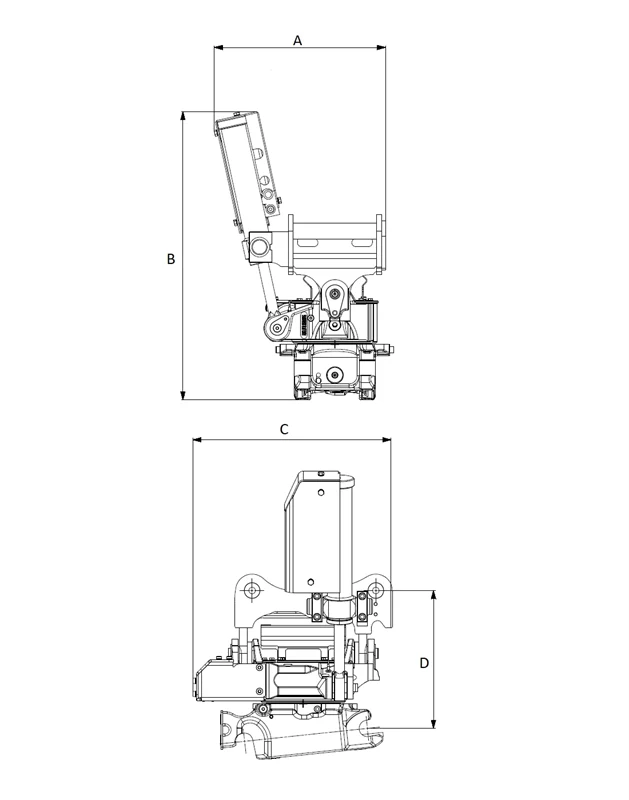

| Dimension A, Width | 314 mm |
| Dimension B, Installation height total | 810 mm |
| Dimension C, Length | 468 mm |
| Dimension D, Installation height | 389 mm |
