Rototilt RC8
or 4 interest-free installments by Afterpay. More Info
Rototilt® RC8 is the perfect tiltrotator for heavier tasks in areas such as ground and road work. RC8 is designed to handle large breakout torques of up to 330 kNm and is optimised for excavators weighing between 23-32 tonnes. All RC™ Tiltrotators have been designed for your operating experience, energy efficiency and versatility. With pressure-compensated hydraulics, you can use the tilt and rotate functions independently of each other to deliver optimum precision. Thanks to the RC™ System proportional control system, you can also control all the functions in one excavation movement.
Description
Description
You also gain access to Rototilt’s other functions and properties, such as an oil-filled rotor housing cast in a single piece for maximum lubrication, minimal wear and long service life. You enjoy even more benefits in combination with the optional RC™ Joysticks and QuickChange™, as well as the SecureLock™ safety lock included as standard.
Technical specification
| Machine weight, min-max | 23000 – 32000 kg |
|---|---|
| Weight (from) | 840 kg |
| Bucket width, max | 2000 mm |
| Breakout force, max | 200 kN |
| Breakout torque, max | 330 kNm |
| Tilt angle (2x) | 40 ° |
| Rotation speed (1 revolution in) | 8.0 s at 129 l/min |
| Working pressure | 25 MPa |
| Recommended hydraulic flow, min | 134 l/min |
|---|---|
| Number of lubrication points | 5 |
| Rotation torque | 11900 Nm |
| Tilting torque, double-acting cylinders | 64700 Nm |

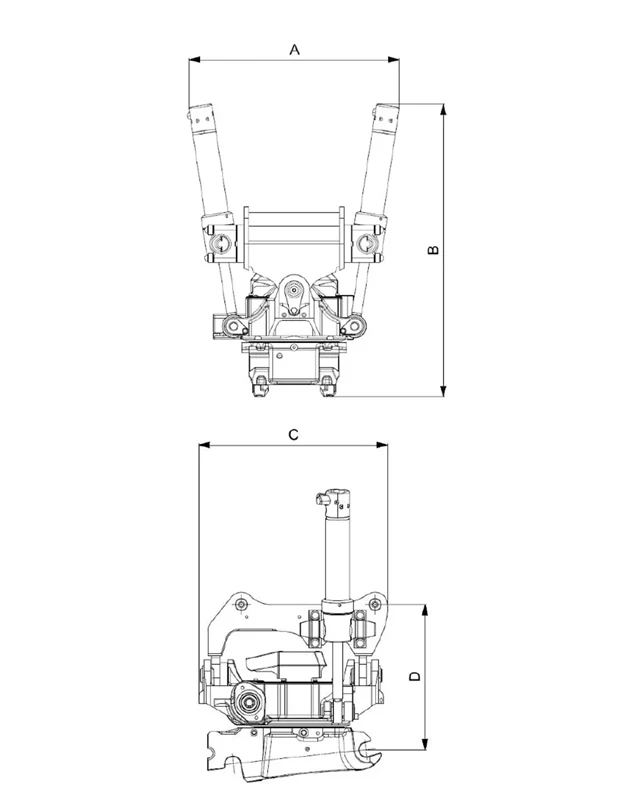

| Dimension A, Width | 950 mm |
| Dimension B, Installation height total | 1333 mm |
| Dimension C, Length | 920 mm |
| Dimension D, Installation height | 673 mm |
