S45 Digging Buckets
or 4 interest-free installments by Afterpay. More Info

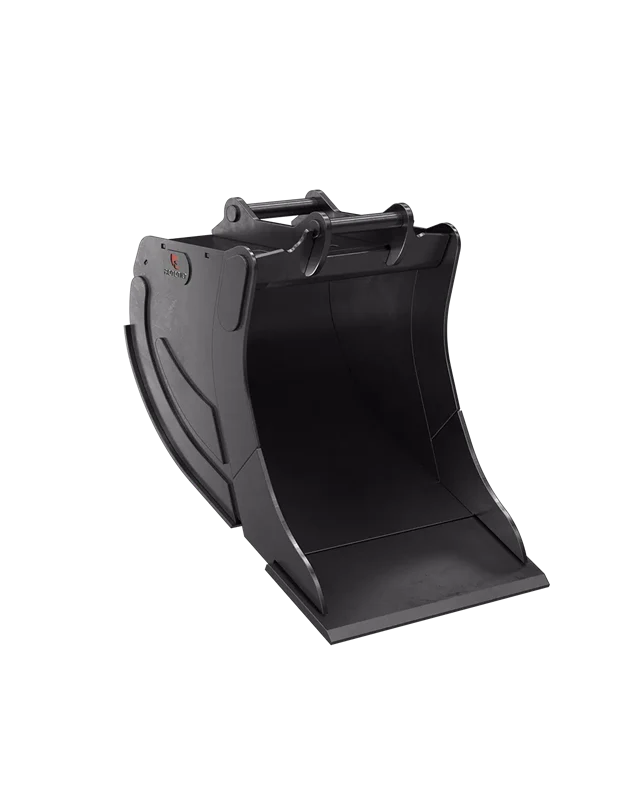

Rototilt’s digging buckets are a reliable tool, powerfully designed to dig into the material and fill the bucket quickly, smoothly and efficiently. As with our other bucket models, the bucket’s weight and hanger bracket angle are optimised for use with Rototilt’s tiltrotators and machine couplers. Together, they ensure that all the power in your machine can be used for digging and excavating in difficult conditions.
Description
Description

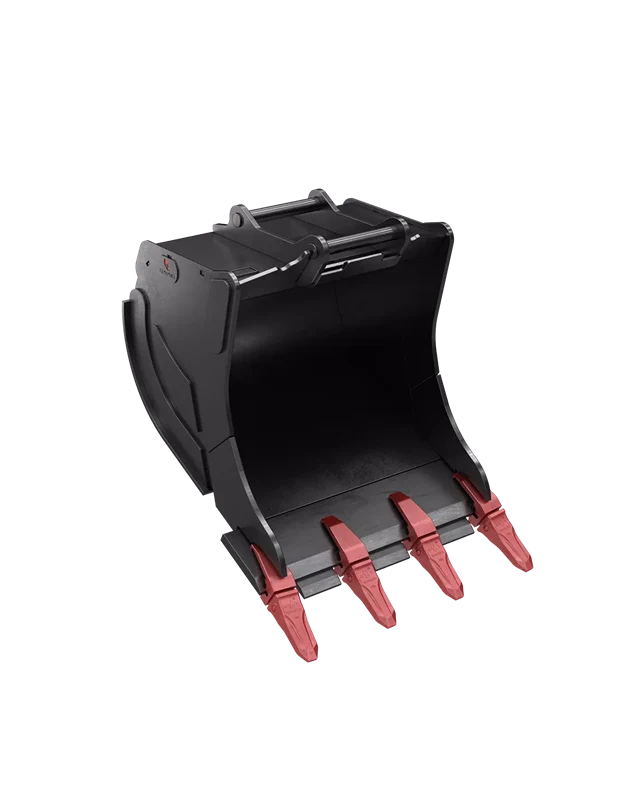

Optimised excavation geometry makes it easier for you to access the material and ensures that it releases better from the edges. A reinforced bucket top section minimises the risk of cracks in the bucket. Intermediate blades in 500 grade (Half Arrow) are located between the teeth for even better durability. Choose between models with the J-series tooth system or blades. Rototilt’s J-series tooth system is made of high-quality steel with self-sharpening teeth.
| Coupler | S45, QC45-4, QC45-5 | S45, QC45-4, QC45-5 | S45, QC45-4, QC45-5 | S45, QC45-4, QC45-5 | S45, QC45-4, QC45-5 | S45, QC45-4, QC45-5 | |
|---|---|---|---|---|---|---|---|
| Machine weight, min-max | 6000 – 10000 kg | 6000 – 10000 kg | 6000 – 10000 kg | 6000 – 10000 kg | 8000 – 12000 kg | 8000 – 12000 kg | |
| Weight | 295 kg | 279 kg | 296 kg | 312 kg | 326 kg | 339 kg | |
| Suitable tiltrotators | R3, RC3 | R3, RC3 | R3, RC3 | R3, RC3 | R4, RC4 | R4, RC4 | |
| Volume | 350 l | 350 l | 400 l | 400 l | 500 l | 500 l | |
| Thickness of cutting blade | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | |
| Tooth type | J250 | J250 | J250 | ||||

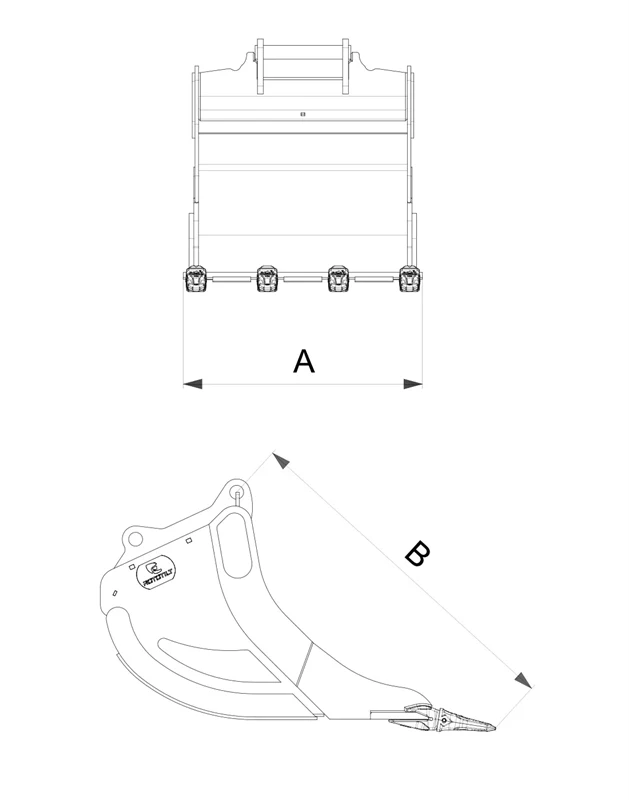

| Dimension A, Width | 750 mm | 700 mm | 750 mm | 820 mm | 800 mm | 850 mm | |
| Dimension B, Radius | 1341 mm | 1240 mm | 1240 mm | 1339 mm | 1302 mm | 1398 mm | |
| Part number | 5409463 | 5409461 | 5409332 | 5409376 | 5410288 | 5410519 |
