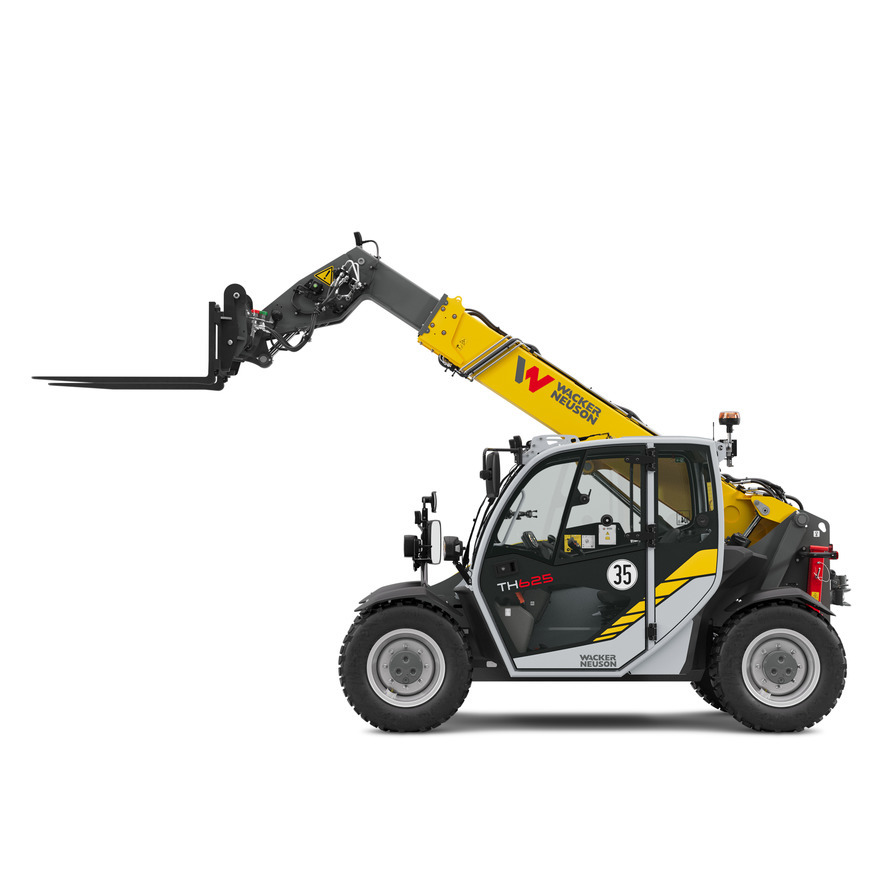

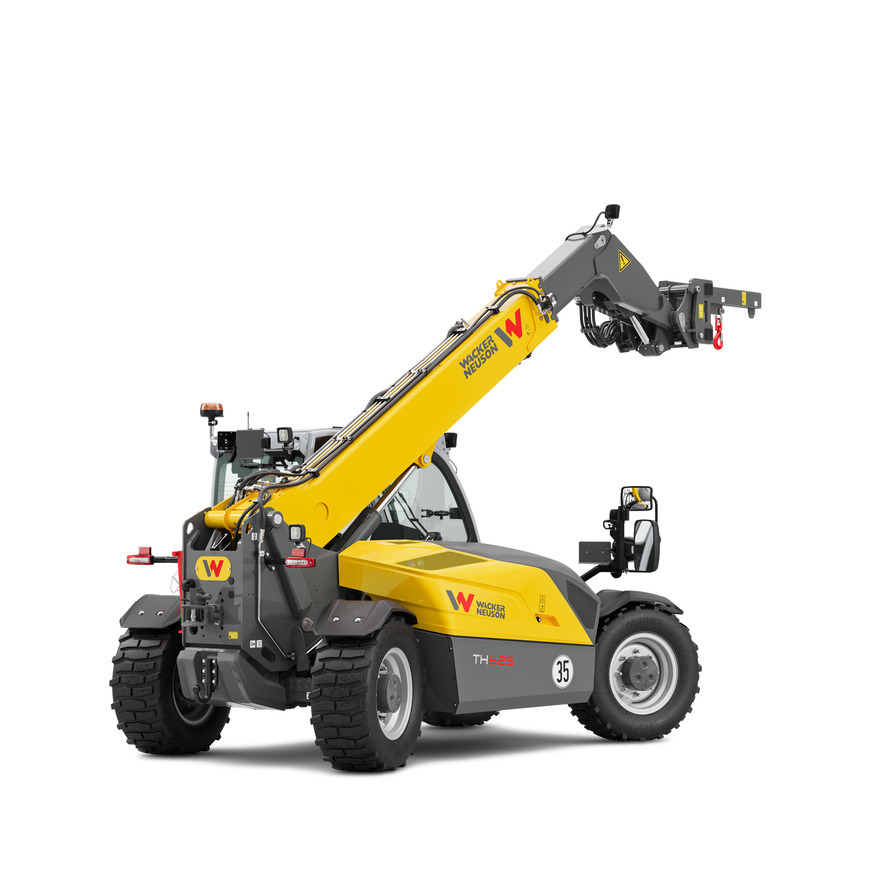

Wacker Neuson TH625

Description

The integrated driver assistance system VLS (Vertical Lift System) ensures safety and also increases operating comfort. The TH625 combines power, reliable hydraulics and compact dimensions with sophisticated technology and a convincing price-performance ratio.

Entry-level price made to measure

• The telehandler is often used for material handling with a pallet fork and shovel. The machine was configured as standard specifically for these tasks. This enables an extremely attractive entry-level price.
• Where required, the machine can optionally be equipped with many features to increase the scope of the machine’s functions. As a result, every customer can customize the machine to their requirements and use it as they require.

Electronically regulated drive system

• Smarter driving and working! The electronically controlled travel drive allows the machine to be driven and used as required.
• Auto Mode and Eco Mode are always available as standard. M-Drive Mode can also be optionally selected. This provides maximum flexibility as the machine can be configured to individual requirements.
• The electronic regulation reduces loss in the drive system and ensures a higher efficiency rate and increased efficiency when compared with existing solutions. A lesser fuel requirement enables operation with lower rpm.

Flow Sharing

• Flow Sharing enables the operation of several functions under constant hydraulic pressure. This enables simultaneous work movements, such as lifting/lowering the attachment and rolling in/out in parallel.
• Through Flow Sharing the operator can work with the machine faster, more sensitively, and more comfortably, which again increases productivity.

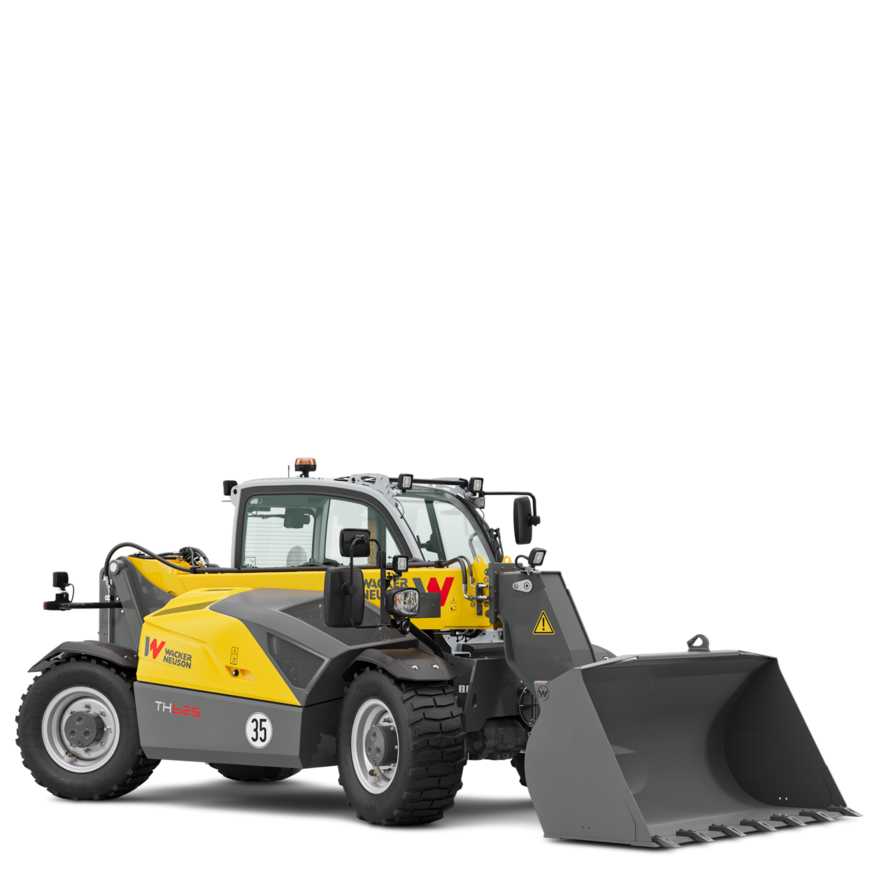

Automatic bucket return and shaking function

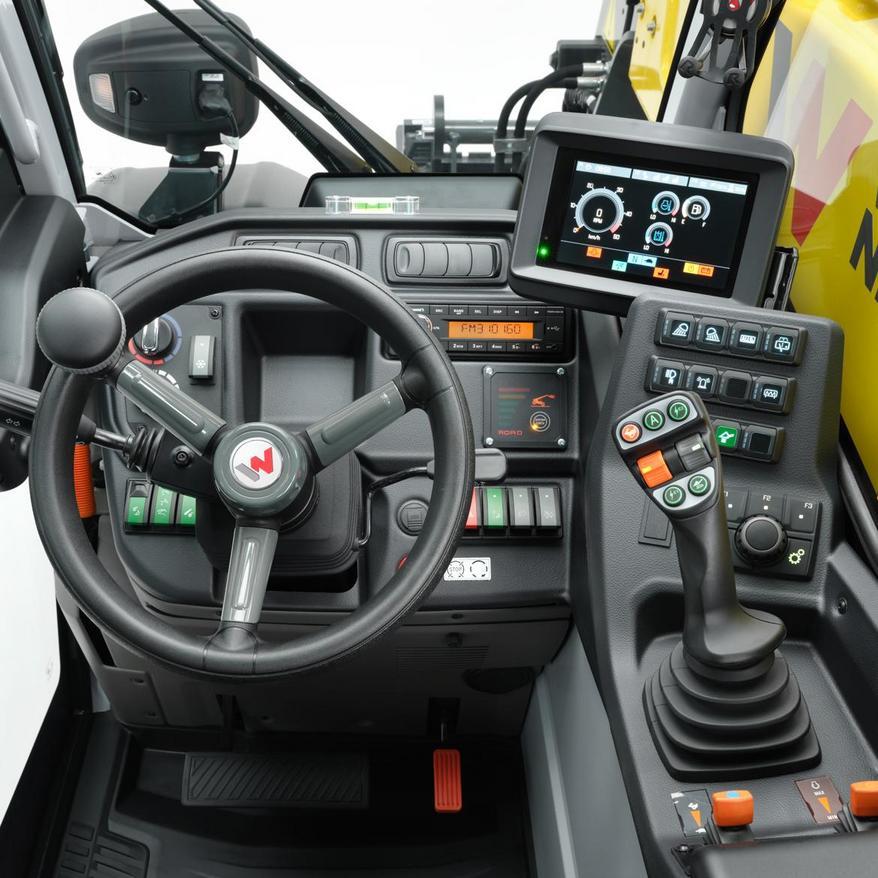

• The operation of the automatic bucket return is ergonomically positioned on the joystick and the position of the tilt cylinders is saved at the touch of a button. The attachment can then return to exactly the same position during the next charging process. In conjunction with the 7-inch display, the automatic bucket return function can also be extended to the lifting cylinder.
• A plus in terms of comfort, precision and speed for the operator for recurring work, such as stacking work or filling containers with fixed heights and/or tailboards.
• The vibratory function is activated at the press of a button and automatically moves the bucket back and forth repeatedly. This makes it easier to tip out bulk material, which can often remain stuck in the bucket.

VLS (Vertical Lift System)

• The VLS (Vertical Lift System) is a driver assistance system that makes the work easier for the operator when lifting or lowering loads by extending and retracting the telescopic boom semi-automatically when lifting and lowering, respectively, without the operator having to additionally control the telescopic function. This makes smooth and quick work possible.
• The almost vertical lifting and lowering movement also makes the telehandlers with VLS very stable since the load does not reach the overload range. Experienced drivers can work faster and more safely with VLS. Less experienced drivers receive valuable support for lifting and loading work.
• The VLS (Vertical Lift System) can be used in three different modes: Bucket Mode, Stacking Mode or Manual Mode. This provides the operator with maximum flexibility to perform different work tasks.
