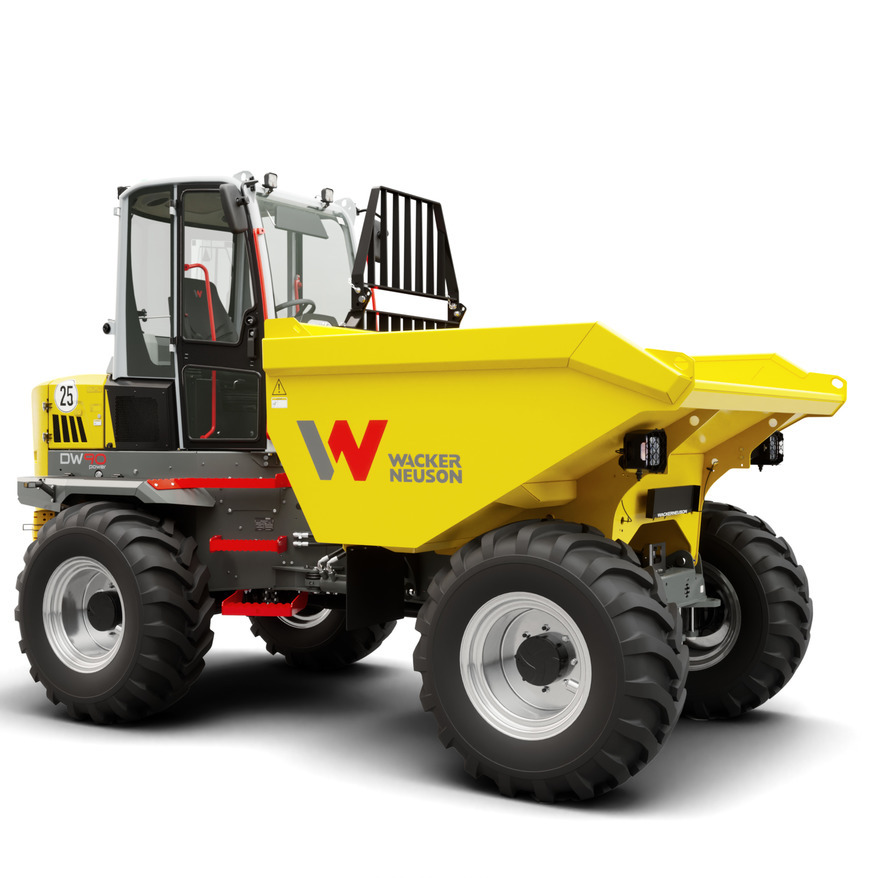

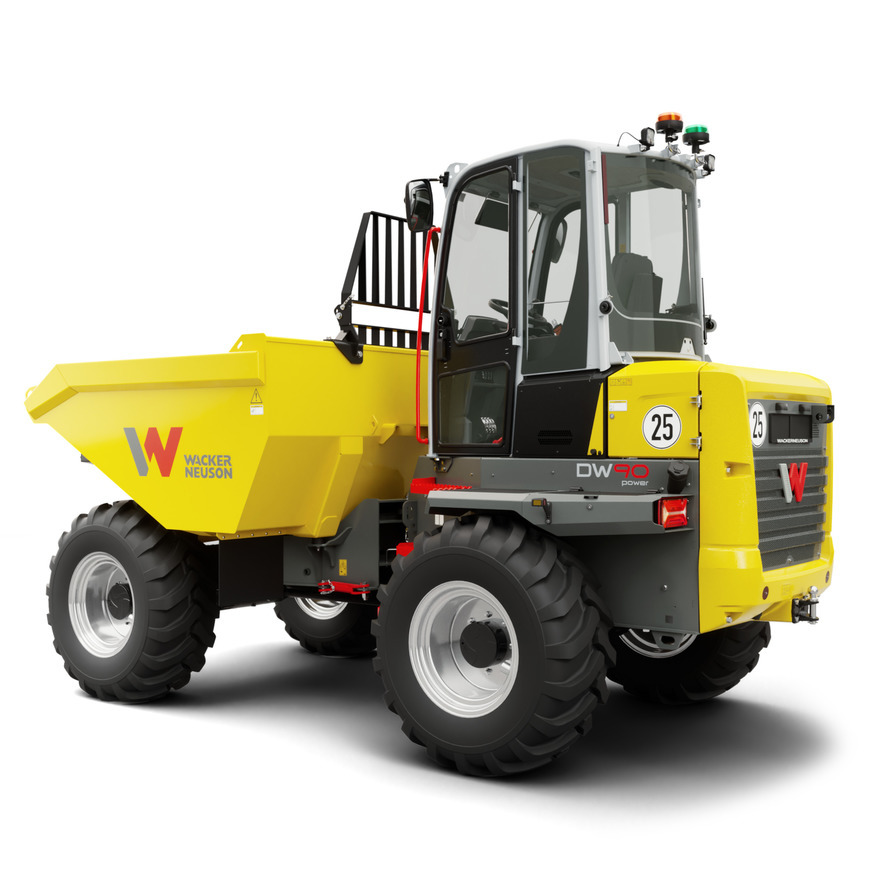

Wacker Neuson DW90
or 4 interest-free installments by Afterpay. More Info

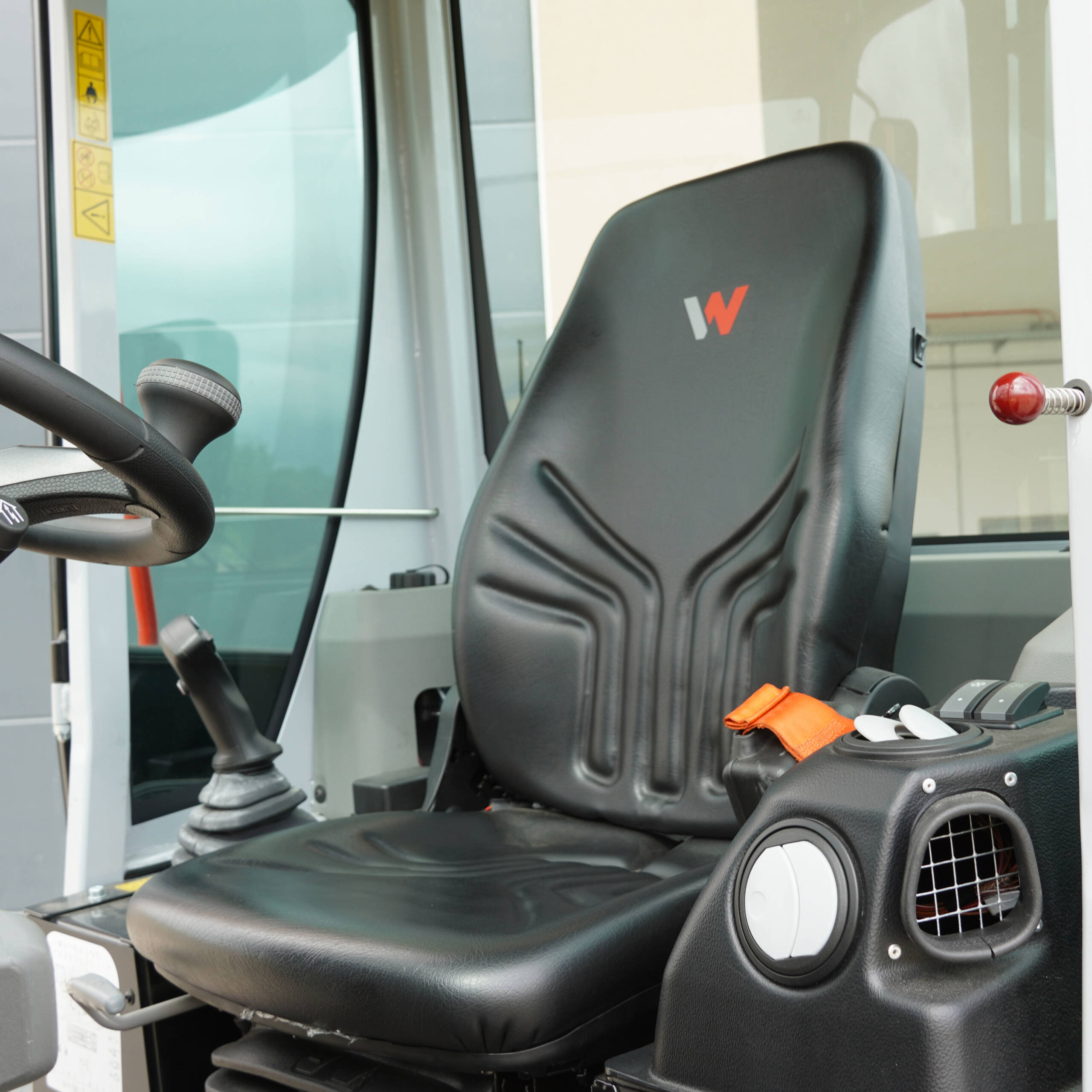

The outstanding operator environment and the high level of safety features contribute to this exceptional material handler with a payload of 9,000 kg. The high skip volume provides space for a lot of material, and reduces the turnaround times on the construction site. Those who have a lot to transport, while valuing safety and performance, are on the right path with the DW90. And all that with up to 25 km/h. The cameras mounted on both sides with washing system provide the respective image on the 7-inch color display and thereby increase the safety of the machine’s surroundings with a high level of visibility. Furthermore, it is equipped ex works with skip and tilt monitoring, as well as optionally with a hill-hold function.
| Length | 4,729 mm |
| Operating weight (min.-max.) | 4,324 – 4,944 kg |
| Width | 2,400 mm |
| Height | 3,416 mm |
| Weight | 4,478 kg |
| Payload | 9,000 kg |
| Skip capacity levelled | 3,750 l |
| Skip capacity heaped | 4,600 l |
| Skip capacity waterlevel | 2,400 l |
| Pendulum angle | 11 ° |
| Skip | Front tip skip |
Description
Description
Inclination monitoring
- If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
- An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.
Skip monitoring
- Skip monitoring takes over the control of the skip position before driving off and thus prevents consequential damage or accidents.
- Real-time checking of the skip position informs the operator if locking is incomplete and reduces travel speed to 13 km/h to avoid accidents.
- This minimizes the risk of damage or accidents to the machine and the surroundings.
Hydrostatic 4-wheel drive with automatic ECO mode
- Just hop on and go: with the hydrostatic 4-wheel drive, the operator can concentrate on his work without frequent gear shifting.
- A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.
- The machine’s automatic ECO mode is an asset to cost and environmentally-conscious users as it ensures minimal consumption with optimum power use.
Hill-Hold function
- The integrated hill-hold function prevents the machine from rolling back when at standstill, as soon as the foot is taken off the gas pedal.
- The machine is braked automatically and secured against rolling back.
Active Sense Control
- The Active Sense Control (ASC) radar system has innovative object detection with an optionally selectable braking function. This system warns the operator on a display of approaching objects and shows them. Where necessary, the system promptly slows the machine down and, if required, it will also bring it to a standstill (with the selected Stop Assistant).
- The machine’s surroundings are scanned in real time for possible obstacles and where required, action is taken. Even trailer operation or tight parking maneuvers have been considered: the system can be switched to blind for a short time so as to not impede the operation.
- Thanks to the intelligent system, it is possible to both load and unload without needing to switch off the machine.
