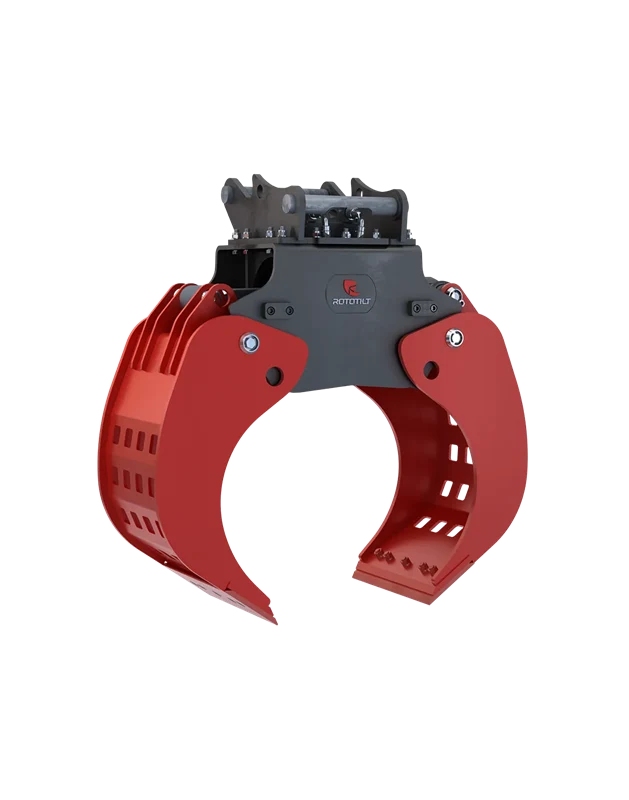

SG3 Sorting Grapple
or 4 interest-free installments by Afterpay. More Info
Our proprietary sorting grapple is tailor-made for use under a tiltrotator. The sorting grapple is a powerful and flexible work tool for work that demands precision, including sorting, handling stones and handling pipes. This is achieved thanks to its considerable grapple force and the reversible wear steel that closes tip-to-tip. It is at its most flexible in combination with our angled AFT ST tool attachment frame, as it can be used in combination with Rototilt’s tiltrotators and enables simple upgrading to QuickChange™.
Description
Description
The sorting grapple has a robust design and a built-in load-holding valve that holds the load in place. It has a number of smart features for you as a user. For example, replaceable expander pins ensure easy adjustment, while end-limit damping and end-limit stops automatically brake the grapple claws at full opening position, eliminating impacts.
| Name | SG3 | |
|---|---|---|
| Coupler | S45, S50, QC45-5, QC60-5 RR, QC45-4, QC60-4, S60 | |
| Machine weight, min-max | 9000 – 16000 kg | |
| Weight | 427 kg | |
| Lifting capacity, max | 6000 kg | |
| Grapple area | 0.24 m² | |
| Working pressure, min-max | 250 bar | |
| Pressure relief valve | 250 bar | |
| Recommended flow | 50 l/min | |
| Grapple force, tip-to-tip | 22.5 kN | |
| Dimension A, Height tip to tip | 873 mm | |
| Dimension B, Width | 540 mm | |
| Dimension C, Height max grapple width | 693 mm | |
| Dimension D, Max grapple width | 1721 mm |
