S80 Universal Buckets
or 4 interest-free installments by Afterpay. More Info
Rototilt’s universal buckets make your grading work more efficient. Thanks to smart material selections and a well thought-out design, we have managed to combine a low weight with a strong construction. The result is a powerful and versatile bucket. The bevelled corners, the customised hanger bracket angle, the long and flat floor and the tapered design are some of the features that make the universal bucket a profitable tool. The design makes loading and releasing the material easier. In combination with the cutting edge, it also results in reduced digging resistance and better fuel efficiency.
Description
Description
The hanger bracket angle is adapted for Rototilt’s tiltrotators and machine couplers, and allows you to rotate the bucket easily without dropping any material. The use of high-quality steel in exposed sections makes our buckets even more durable, while a reinforced bucket top section minimises the risk of cracks. In addition, the wear bars have a dual function: they protect the bucket at the same time as ensuring that the material is not compacted too firmly. Together with the optimised weight, this means more power, a longer service life and lower fuel consumption for your machine.
| Coupler | S80, QC80 | S80, QC80 | S80, QC80 | S80, QC80 | |
|---|---|---|---|---|---|
| Machine weight, min-max | 26000 – 32000 kg | 32000 – 43000 kg | 32000 – 43000 kg | 32000 – 43000 kg | |
| Weight | 1312 kg | 1798 kg | 1964 kg | 2133 kg | |
| Suitable tiltrotators | R8 | R9, RC9 | R9, RC9 | R9, RC9 | |
| Volume | 1600 l | 1600 l | 1800 l | 2000 l | |
| Thickness of cutting blade | 50 mm | 50 mm | 50 mm | 50 mm | |

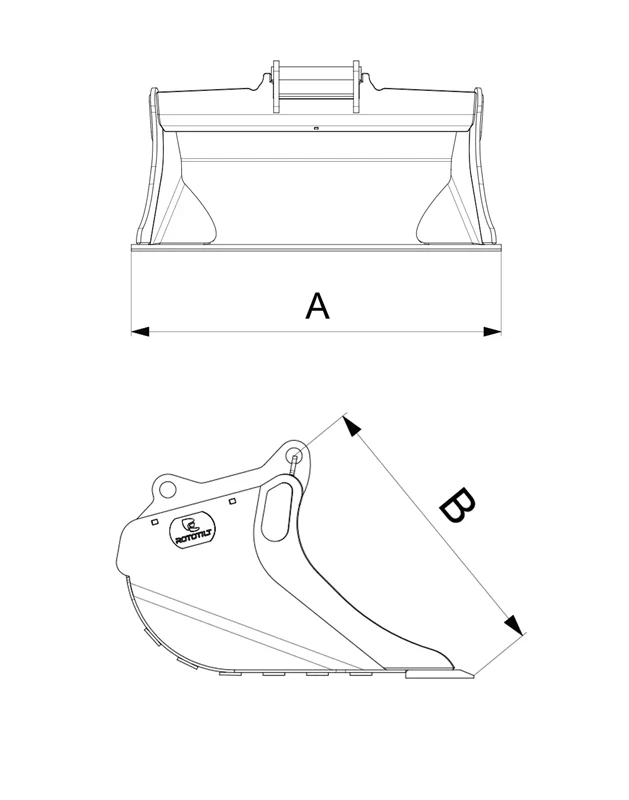

| Dimension A, Width | 2000 mm | 2000 mm | 2200 mm | 2400 mm | |
| Dimension B, Radius | 1368 mm | 1395 mm | 1397 mm | 1397 mm | |
| Part number | 5408626 | 5411404 | 5411262 | 5411309 |
