QC60 QuickChange™ Couplers
or 4 interest-free installments by Afterpay. More Info
Rototilt’s QuickChange™ couplers allow you to perform automatic tool changes directly from the cab. Together with our other value-creating products, you get an optimised package with a machine coupler, tiltrotator, control system and tools. By implementing QuickChange™, you will become even more productive. Especially when the task at hand requires a large breakout force, and where you often need to perform a variety of operations. When working in demolition, you can switch from preparatory house demolition to sorting work from one minute to the next.
Description
Description
Thanks to the award-winning SecureLock™ safety solution, which is included as standard in all QuickChange™ products, we have minimised the risk of swinging or dropped tools.
| Coupler | QC60-4 | QC60-5 |
|---|---|---|
| Machine weight, min-max | 8000 – 19000 kg | 8000 – 19000 kg |
| Weight | 150 kg | 155 kg |
| Locking pressure, max | 350 bar | 350 bar |
| Working pressure, max | 35 MPa | 35 MPa |
| Permitted positive torque | 165 kNm | 165 kNm |
| Permitted negative torque | 108 kNm | 108 kNm |
| Max load, lift hook | 5000 kg | 5000 kg |
| Number of couplings, min/max | 2 – 4 | 2 – 5 |
| Max flow 1/4″ | 22 l/min | |
| Max flow 3/8″ | 40 l/min | |
| Max flow 1/2″ | 92 l/min | 92 l/min |
| Max flow 3/4″ | 193 l/min | 193 l/min |
| Max flow 1″ | ||

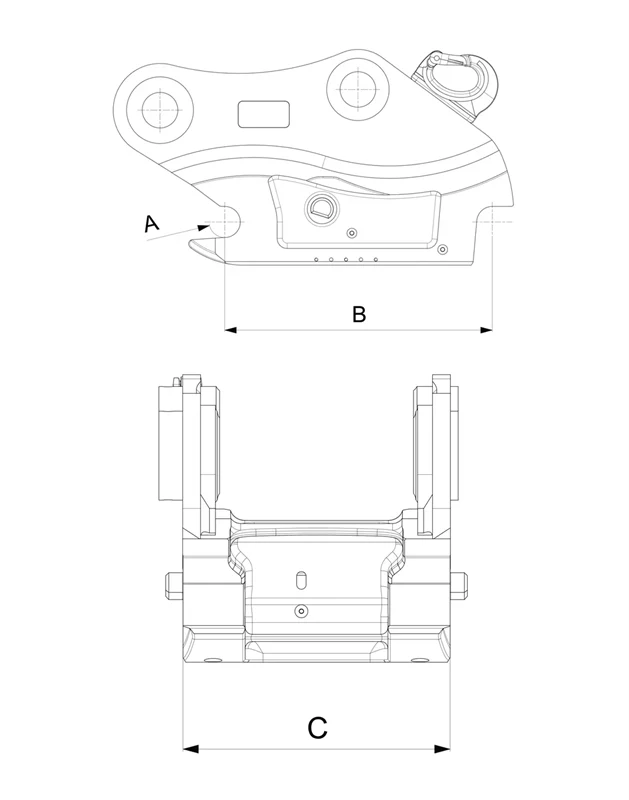

| Dimension A, Pin diameter | Ø60 mm | Ø60 mm |
| Dimension B, CC | 480 mm | 480 mm |
| Dimension C, Width | 339 mm | 339 mm |
